3500/42-01-00

Description

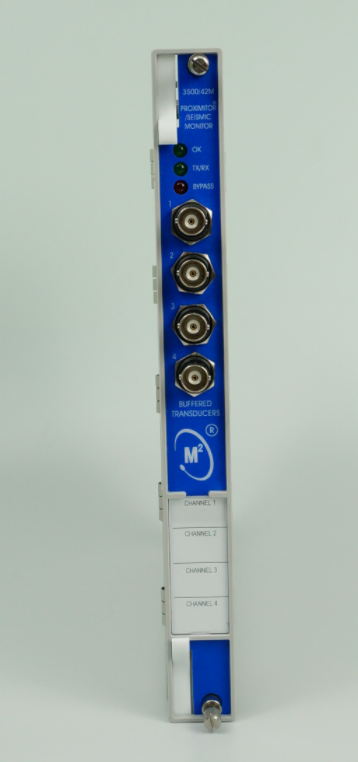

The 3500/42M Proximitor/Seismic Monitor is a 4-channel monitor that accepts input from proximity and seismic transducers, conditions the signal to provide various vibrations and position measurements, and compares the conditioned signals with user-programmable alarms. The user can program each channel of the 3500/42M using the 3500 Rack Configuration Software to perform any of the following functions:

•  Radial Vibration

•  Thrust Position

•  Differential Expansion

•  Eccentricity

•  REBAM*

•  Acceleration

•  Velocity

•  Shaft Absolute

•  Circular Acceptance Region

Note: The monitor channels are programmed in pairs and can perform up to two of these functions at a time. Channels 1 and 2 can perform one function, while channels 3 and 4 perform another (or the same) function.

The primary purpose of the 3500/42M monitor is to provide:

1. Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms.

2.  Essential machine information for both operations and maintenance personnel.

3500/42-AXX-BXX

A: I/O Module Type

0 1 Prox/Seismic I/O Module with Internal Terminations

0 2 Prox/Seismic I/O Module with External Terminations

0 3 TMR Prox/Seismic I/O Module.

0 4 I/O Module with Internal Barriers (4 x prox./accel. ch's) and Internal Terminations

0 5 I/O Module with Internal Barriers (2 x prox./accl. + 2 x channels) and Internal Terminations

0 6 I/O Module with Internal Barriers (4 x Velomitor channels) and Internal Terminations

0 7 Shaft Absolute I/O Module with Internal Terminations

0 8 Shaft Absolute I/O Module with External Terminations

0 9 Prox/Velom I/O Module with Internal Terminations

1 0 Prox/Velom I/O Module with External Terminations

B: Agency Approval Option

0 0 None

0 1 CSA/NRTL/C (Class 1, Div 2)

0 2 ATEX/IECEx/CSA (Class 1, Zone 2)
